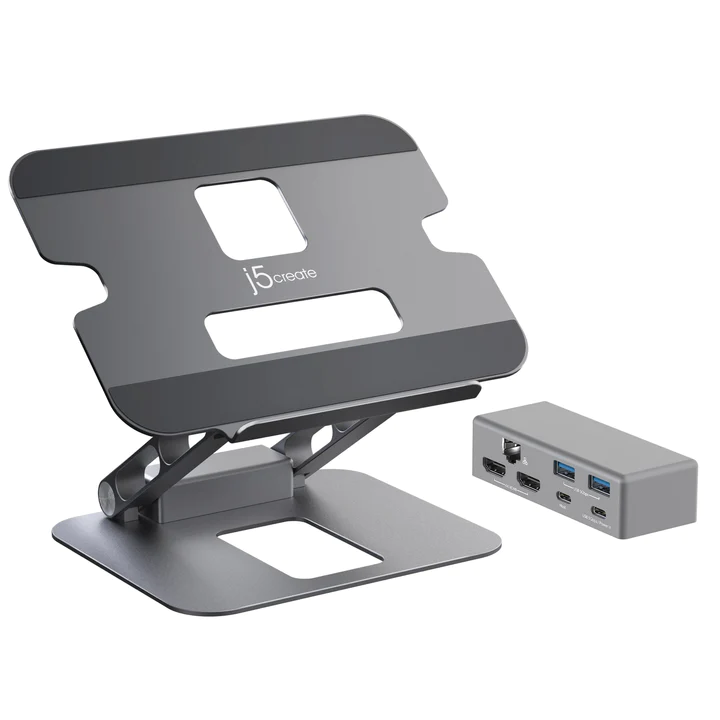

J5 Create JTS427 Multi-Angle Dual HDMI Docking Stand

J5 Create JTS427 Multi-Angle Dual HDMI Docking Stand

• Specifications

  • System Requirements

    • • Available USB-C port that supports DisplayPort alt mode and USB Power Delivery 2.0 or 3.0
    • • DisplayPort v1.2 required on graphics card or video source to support 4K resolution @ 30 Hz.
    • • The host device must support Multi-Stream Transport (MST) and DisplayPort 1.2 to achieve dual-monitor configuration
    • • The MST protocol is not currently supported by macOS
      *macOS only supports SST, which means all connected monitors will show the same content.

    Hardware

    • Warranty: 2-Year Limited
    • Number of Tiers: N/A
    • Adjustable Angle: N/A
    • Maximum Weight Capacity: 9 lbs. (4 kg)
    • Additional Storage: No
    • Assembly Required: No
    • Docking Station Included: Yes
    • Host Connector: 1 - USB-C Female
    • Video Output: 2 - HDMI Female
    • Power Source: Bus-powered or self-powered
    • Network Interface: Yes
    • Ports:
      1 - USB-C 5Gbps (Data transfer & Power Delivery 3.0)
      2 - USB 5Gbps Type-A
      2- HDMI (4K for Single display, 1080p for Dual display)
      1 - Gigabit Ethernet

    Performance

    • Maximum Display Resolution: 3840 x 2160
    • Maximum Display Refresh Rate: 4K @ 30 Hz
    • Displays Supported: 2
    • Wide Screen Supported: Yes
    • Audio Channel: 2.1 via HDMI

    Power

    • Power Delivery: Up to 100W
    • Power Consumption: ≤ 900 mA
    • Input Current: Up to 5A
    • Input Voltage: Up to 20V
    • Output Current: Up to 4.5A
    • Output Voltage: Up to 20V

    Physical Specifications

    • Color: Space Grey
    • Stand Material: Aluminum
    • Enclosure Type: Aluminum
    • Cable Length: 23.6 in. (60 cm)
    • Product Height: 11.4 in. (290 mm)
    • Product Width: 8.9 in. (226 mm)
    • Product Depth: 2.08 in. (53 mm)
    • Product Weight: ≈ 2.89 lbs. (1.31 kg) (including cable)
    • Operating Temperature: 30 to 116°F (0 to 30°C)
    • Operating Humidity: < 85% non-condensing
    • Storage Temperature: 0 to 155°F (-10 to 65°C)
    • Storage Humidity: < 85% non-condensing

    Special Notes

    • • A 4K-capable display and cable are required for obtaining the 3840 x 2160 resolution
    • • If connected to a USB 2.0 host port, or if using a USB 2.0 host cable, performance may be limited
