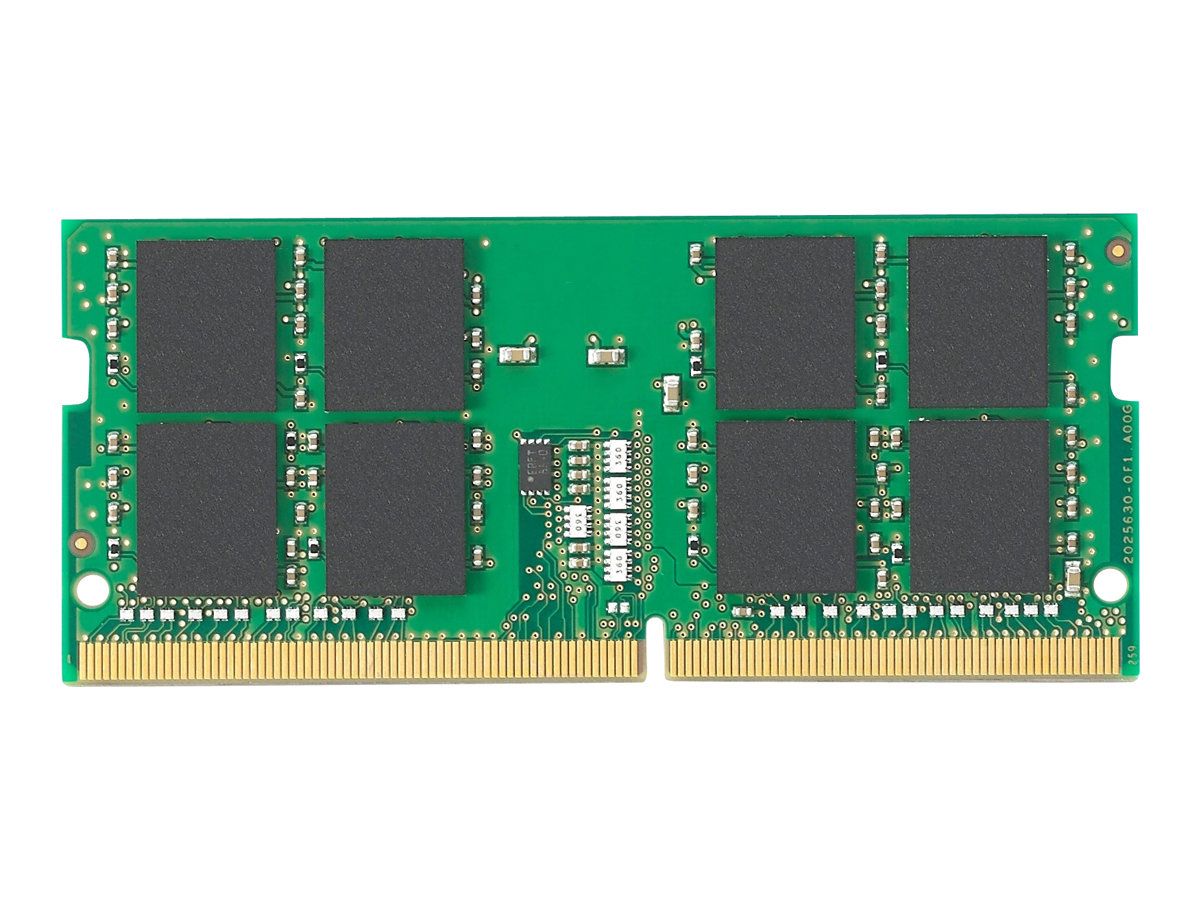

Kingston DDR4 2933MT/s Non-ECC Unbuffered SODIMM CL21 2RX8 1.2V 260-pin 16Gbit

Unleash Peak Performance with Kingston DDR4 2933MT/s Non-ECC Unbuffered SODIMM CL21 2RX8 1.2V 260-pin 16Gbit

Specifications

CL(IDD)

• 21 cycles

Row Cycle Time (tRCmin)

• 45.75ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin)

• 350ns(min.)

Row Active Time (tRASmin)

• 32ns(min.)

UL Rating

• 94 V - 0

Operating Temperature

• 0o C to +85o C

Storage Temperature

• -55o C to +100o C

Features

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free

Unleash Unrivaled Performance:

Experience lightning-fast speeds and seamless multitasking with the Kingston DDR4 2933MT/s SODIMM. Boost your system's capabilities with amazing 16Gbit memory that ensures an instant response to your commands.

Limited Stock Alert!

Hurry, this high-demand product is flying off the shelves. Don't miss out on the opportunity to enhance your computing experience with Kingston DDR4 2933MT/s SODIMM.

Add to Cart Now!

Upgrade your system today with Kingston DDR4 2933MT/s Non-ECC Unbuffered SODIMM CL21 2RX8 1.2V 260-pin 16Gbit. Elevate your performance with this exclusive product before it's too late!
