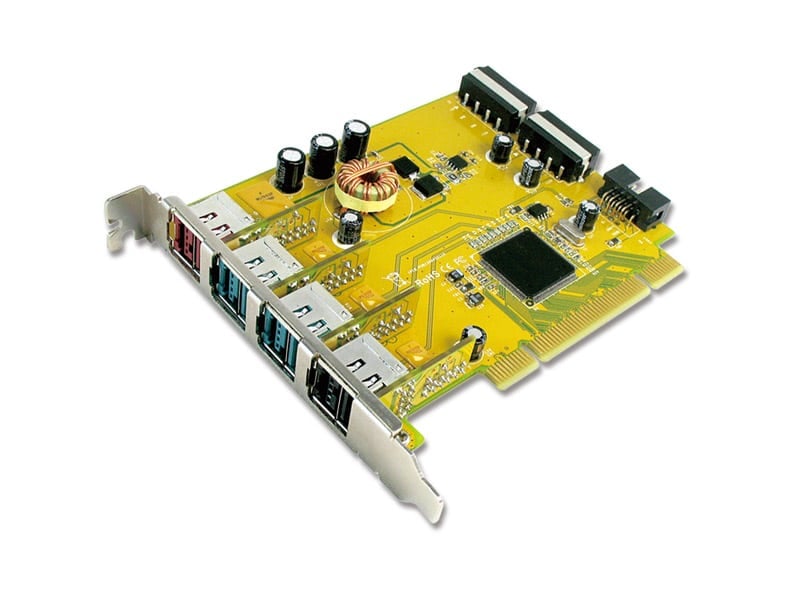

Sunix 1-port 24V & 2-port 12V & 1-port 5V Powered USB PCI Add-On Card
Our Online Price Paying via Bank Transfer R 1143.23 incl. VAT
Normal Price – Without discount
R1,178.59 incl. VAT
4 Available: Delivery 2-3 Business Days
Introducing the Sunix PUB1210P 1-port 24V + 2-port 12V + 1-port 5V Powered USB PCI Add-On Card! With 4 external and 1 internal ports, this card is powered by 2 internal 4-pin molex connectors to your PSU. Equipped with the NEC UPD720102 chipset, this card is perfect for PoS applications such as scales, LED displays, slip printers, barcode scanners, and more. Say goodbye to the hassle of AC adapters with this efficient and versatile USB PCI card. Upgrade your system today with the Sunix PUB1210P!
Discover the Power of Sunix 1-port 24V & 2-port 12V & 1-port 5V Powered USB PCI Add-On Card
Specifications
Description: 1-port 24V & 2-port 12V & 1-port 5V Powered USB PCI Add-On Card
USB Communication
- Interface: Universal Serial Bus 2.0
- Controller: NEC UPD720102
- Bus: PCI 33MHz Ver2.1/2.2
- External Powered USB Port:
- +24VDC / 1-port / Maximum 3A
- +12VDC / 2-port / Maximum 3A
- +5VDC / 1-port / Maximum 3A
- External Standard USB 2.0 Port: +5VDC / 4-port / Maximum 0.5A per port
- IRQ & IO: Assigned by System
- Speed: Data Transfer rate of 1.5, 12, and 480Mbps
- Protection: 3A PTC fuse for each Powered USB port
Driver Support
- Microsoft Windows: 95/98/ME/2000/XP/0Vista/7 (X86/X64)
- Microsoft Embedded: POS Ready/XP Embedded
- Microsoft Server: 2003/2008 (X86/X64)
- Linux: Linux 2.4.x / 2.6.x
Regulatory Approvals
Hardware: CE, FCC, VCCI, BSMI
Environment
- Operation Temperature: 0 to 60°C (32 to 140°F)
- Operation Humidity: 5 to 95% RH
- Storage Temperature: -20 to 85°C (-4 to 185°F)
Dimension
- PCB Dimension: 130 x 100 mm
- Bracket: Standard 120 mm
- Bracket Space: 1
Download Manual
Manual: 771-POWUSB000-001-2
Download Datasheet
Datasheet: PUB1210P Datasheet_V12
