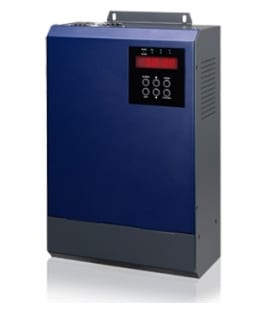

Introducing the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW

Specifications

Product Code: SOL-I-AS-2
Model: Aspire 2.2KW
RATED OUTPUT POWER: 2200 W(3HP) (supports 0.75~3HP water pump)
PV INPUT (DC): Nominal DC Voltage / Maximum DC Voltage: 540 VDC / 800 VDC
Start-up Voltage: 250 VDC
MPPT Voltage Range: 250 VDC ~ 780VDC
Number of MPP Trackers: 1
AC INPUT: Input Voltage: N/A (-15% ~ +10%)
Input Frequency: 47 Hz ~ 63 Hz
OUTPUT: Nominal Voltage: 3 x 380/400/415/440 VAC
Efficiency: > 97%
Nominal Output Current: 5.0 A
Motor Type: Three-phase asynchronous motor
motor Frequency Precision: ±0.2%
PROTECTION: Full Protection Phase lost, dry pumping, motor locked, weak sunlight, over-voltage, under-voltage, over-current, surge, overtemperature and short circuit protection
PHYSICAL: Dimension, D x W x H (mm): 110 x 230 x 342
Net Weight (kgs): 5.5
Type of Mechanical Protection: IP20
INTERFACE: Communication Port: RS-232/RS-485
ENVIRONMENT: Humidity: < 95% RH(Non-condensing)
Operating Temperature: -20°C ~ 45°C at 100% full load, 46°C ~ 60°C power derating

Power Your Pump with the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW!

Elevate your water pumping experience with the amazing Mecer Aspire Water Pump Solar Inverter. Instantly upgrade to three-phase power and experience exclusive efficiency with this 2.2kW powerhouse. No more worrying about power outages or fluctuating energy – this inverter ensures consistent and reliable performance for your water pump.

Experience Advanced Features

Say goodbye to motor issues with the built-in protections including phase loss, dry pumping, and over-voltage. The Mecer Aspire Water Pump Solar Inverter offers precision control, with ±0.2% frequency precision, ensuring optimal performance for your three-phase asynchronous motor. With a sturdy IP20 mechanical protection, this inverter is built to last.

Act Fast – Limited Availability!

This high-demand product is flying off the shelves. Don't miss your chance to get your hands on the Mecer Aspire Water Pump Solar Inverter 3 Phase 2.2kW. Order now before it's gone!

Ready to Power Up? Add to Cart Now!
