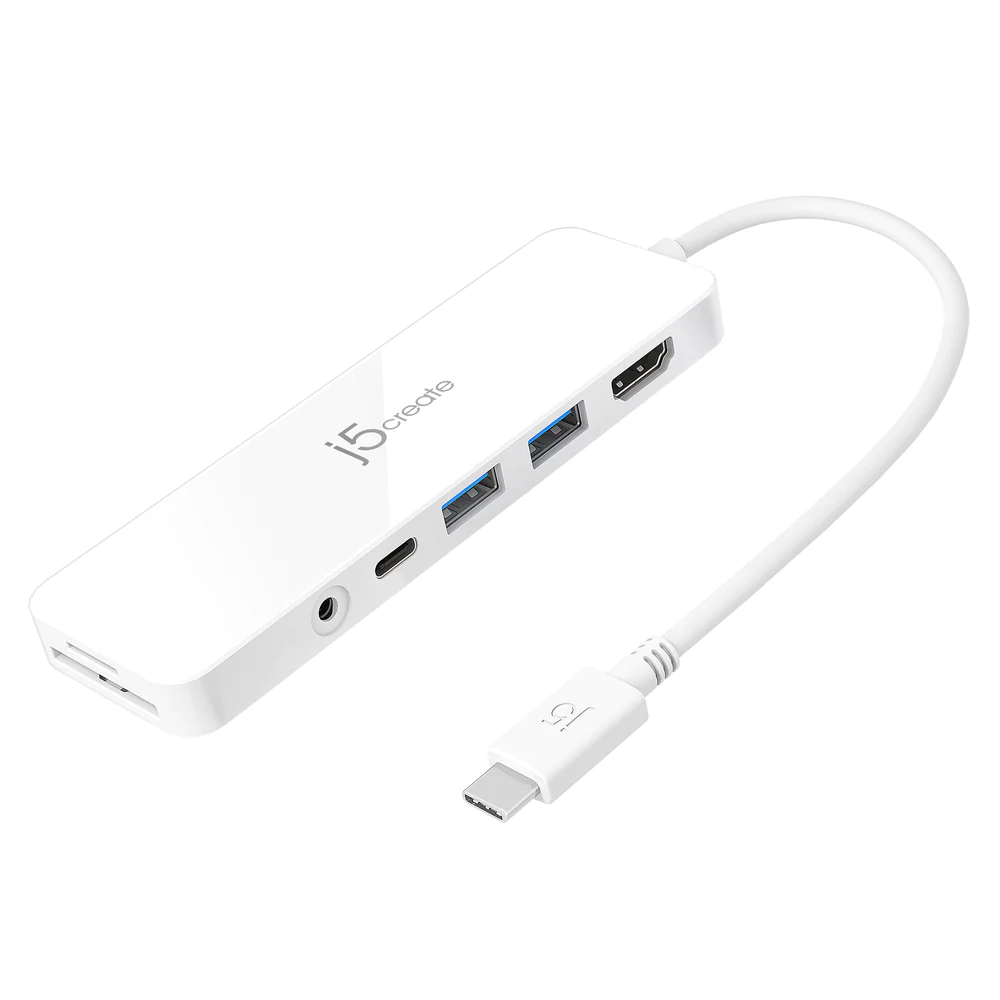

J5create JCD373USB-C Multi-Port Hub with Power Delivery: Unleash the Power of Connectivity

• Specifications

  System Requirements:

  • Available USB-C® port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0

  Special Notes:

  • • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
  • • If you are using high-powered USB™ devices, attach the USB-C® power adapter to the power delivery port to ensure maximum performance
  • • To ensure files copy completely, do not remove the USB-C® power adapter while copying files

  Hardware

  • Warranty: 2-Year Limited
  • Host Connector: 1 - USB-C® 3.1 male
  • Video Output: 1 - HDMI™ Female
  • Power Source: Bus-powered or self-powered
  • Ports: 2 - USB™ Type-A 3.1 Gen 1, 1 - USB-C® for PD 3.0 charging, 1 - microSD™ & SD™ card reader/writer, 1 - HDMI™, 1 - 3.5 mm audio/mic combo jack

  Performance

  • Maximum Display Resolution: 3840 x 2160
  • Maximum Display Refresh Rate: 30 Hz
  • Maximum Data Transfer Rate: 5 Gbps

  Power

  • Power Delivery: Up to 60W via USB-C®
  • Power Consumption: 400 mA

  Physical Specifications

  • Color: White
  • Enclosure Type: ABS Plastic
  • Cable Length: 5.9 in. (150 mm)
  • Product Height: 4.8 in. (122 mm)
  • Product Width: 1.53 in. (39 mm)
  • Product Depth: 0.43 in. (11 mm)
  • Product Weight: 1.8 oz (51g)

  Package Contents

  • 1 - JCD373 USB-C® Multi-Port Hub with Power Delivery
  • 1 - Quick Installation Guide
