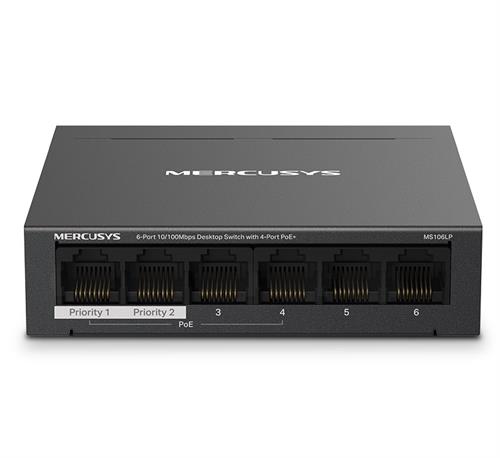

Mercusys MS106LP 6-Port Desktop Switch

The Mercusys MS106LP is a smart and affordable way to expand your wired network. Moreover, it adds Power over Ethernet support for compatible devices. This compact desktop switch is ideal for small offices, shops, home setups, and surveillance systems that need stable wired connections.

With six Fast Ethernet ports, the MS106LP helps connect more devices with ease. In addition, four PoE+ ports can deliver both data and power through one cable. As a result, it works well with IP cameras, access points, IP phones, and other PoE-ready devices.

Key Features

• 6 x 10/100 Mbps RJ45 ports for simple wired expansion
• 4 x PoE+ ports for power and data over one Ethernet cable
• Up to 30W PoE output per port
• Total PoE power budget of 40W
• Supports PoE transmission distance up to 250 meters in Extend Mode
• Plug-and-play setup with no configuration needed
• Desktop metal design for reliable daily use
• Auto-negotiation and Auto MDI/MDIX for easy connection
• Ideal for IP cameras, wireless access points, and IP phones
• Quiet fanless operation for noise-free placement

Built for Everyday PoE Networking

This switch is designed for users who need a simple and cost-effective PoE solution. Therefore, it reduces cable clutter and lowers installation effort. The four PoE+ ports can power network devices directly, while the extra uplink ports help connect to routers, NVRs, or other switches.

Long-Range Mode for Flexible Placement

The MS106LP supports Extend Mode for longer PoE transmission distances. Because of this, it can send power and data up to 250 meters on selected ports. This feature is especially useful for camera installations in hallways, parking areas, and large buildings.

Stable and Easy to Use

Setup is quick and simple. Just connect your devices, and the switch starts working right away. Furthermore, its unmanaged design removes the need for software or special settings. This makes it a practical choice for users who want dependable performance without extra complexity.

Product Highlights

• Product Name: Mercusys MS106LP 6-Port Desktop Switch
• SKU: ESQ-MS106LP
• Ports: 6 x Fast Ethernet ports
• PoE Ports: 4 x PoE+ ports
• PoE Standard: IEEE 802.3af/at
• PoE Budget: 40W total
• Max PoE Per Port: 30W
• Switch Type: Unmanaged desktop switch
• Use Case: Small business, home office, retail, and surveillance
• Packaging: Retail Box
• Warranty: Limited Warranty

If you need a compact switch with PoE support at a good price, the Mercusys MS106LP is a strong choice. It is easy to install, efficient in daily use, and well suited for growing wired networks.
